Product Details
＋

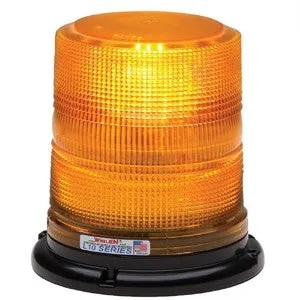

Whelen L10 series LED beacon model L10HAP incorporates four amber LEDs, installed on a passive ballast assembly with an amber optic hard coated polycarbonate lens. The hard coated lens provides extended life/luster protection against UV and chemical stresses. The four conformal coated PC boards and ballast offer additional protection against environmental elements. The L10HAP has 18 Scan-Lock patterns, including steady burn. The dome lens is sealed to a black powder-coated die cast aluminum base, with an “O” ring gasket assembly.
Features:
- Voltage: 12v
- Size: Height=6.42”, Diameter=6.34”
- Amp Draw: 1.0 Amps Peak/ 0.40 Amps Average
- Lens Color: Amber
- Solid state beacon light is vibration resistant
- Installation kit, including mounting hardware, is provided for permanent surface mounting
- Incledes a 12” non-terminated pigtail
- High profile beacon is SAE J845 Class 1 certified
- Five year factory warranty
- Additional mount kit options are sold separately
