- You need to use the HDMI USB cable that comes with in the HDMI box to connect any 5V USB port or any 5V USB adapter except on HUB. Why we need use this HDMI USB cable? Since some HDMI slots, such as on HUB or on SWITCH or on Splitter, cannot provide enough power for the fiber optic HDMI cable. The HDMI fiber optic cable is an active cable, it needs enough power to work properly. Please connect the fiber optic HDMI cable to the HDMI USB cable and then to the HUB or SWITCH or Splitter.

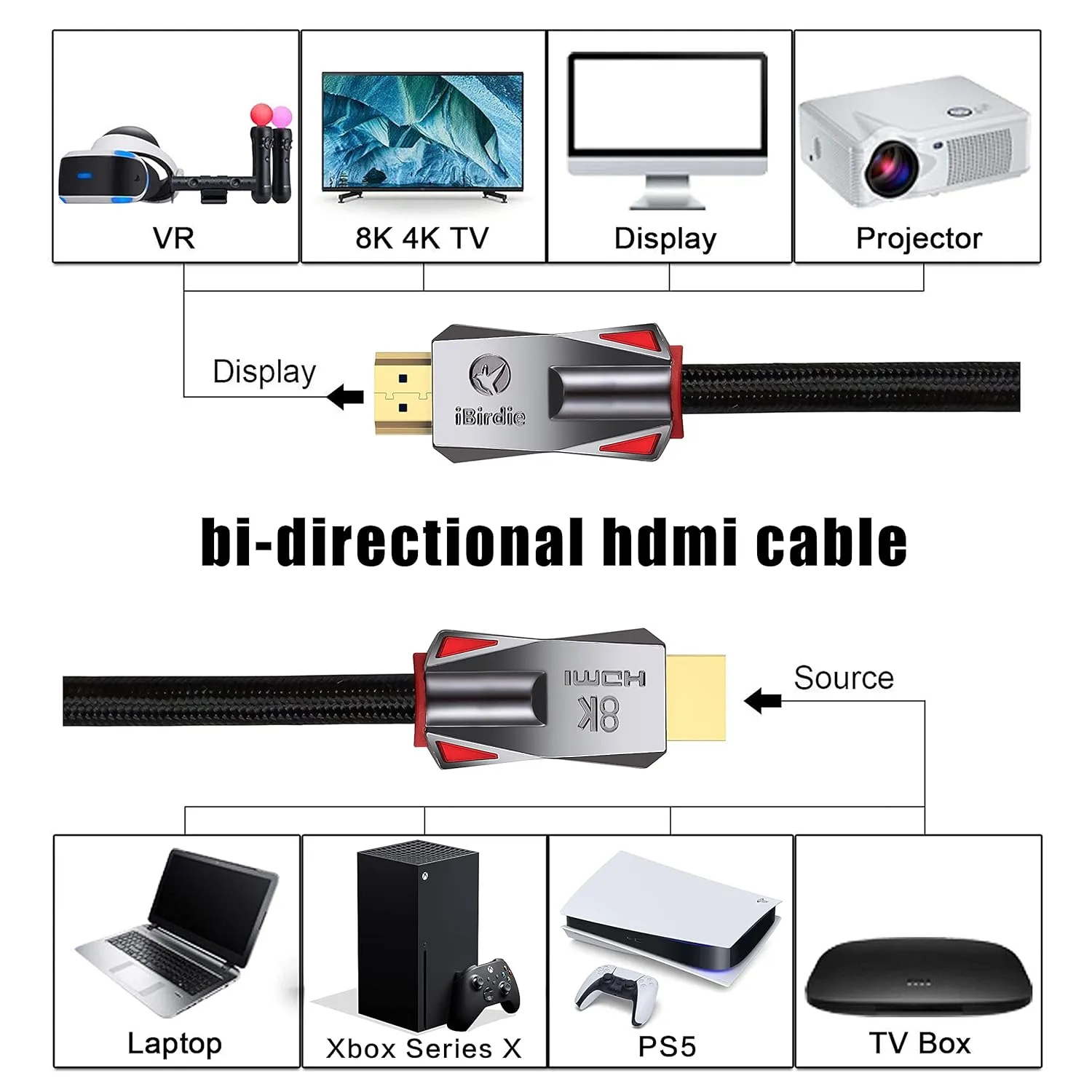

- And fiber optic HDMI cable is directional. The directional HDMI meaning that the source end of HDMI is required to connect to sources (must plug this end to HDMI output from source like DVD/computer/PS5/Xbox...), and another end is display to your monitor/TV/projector.

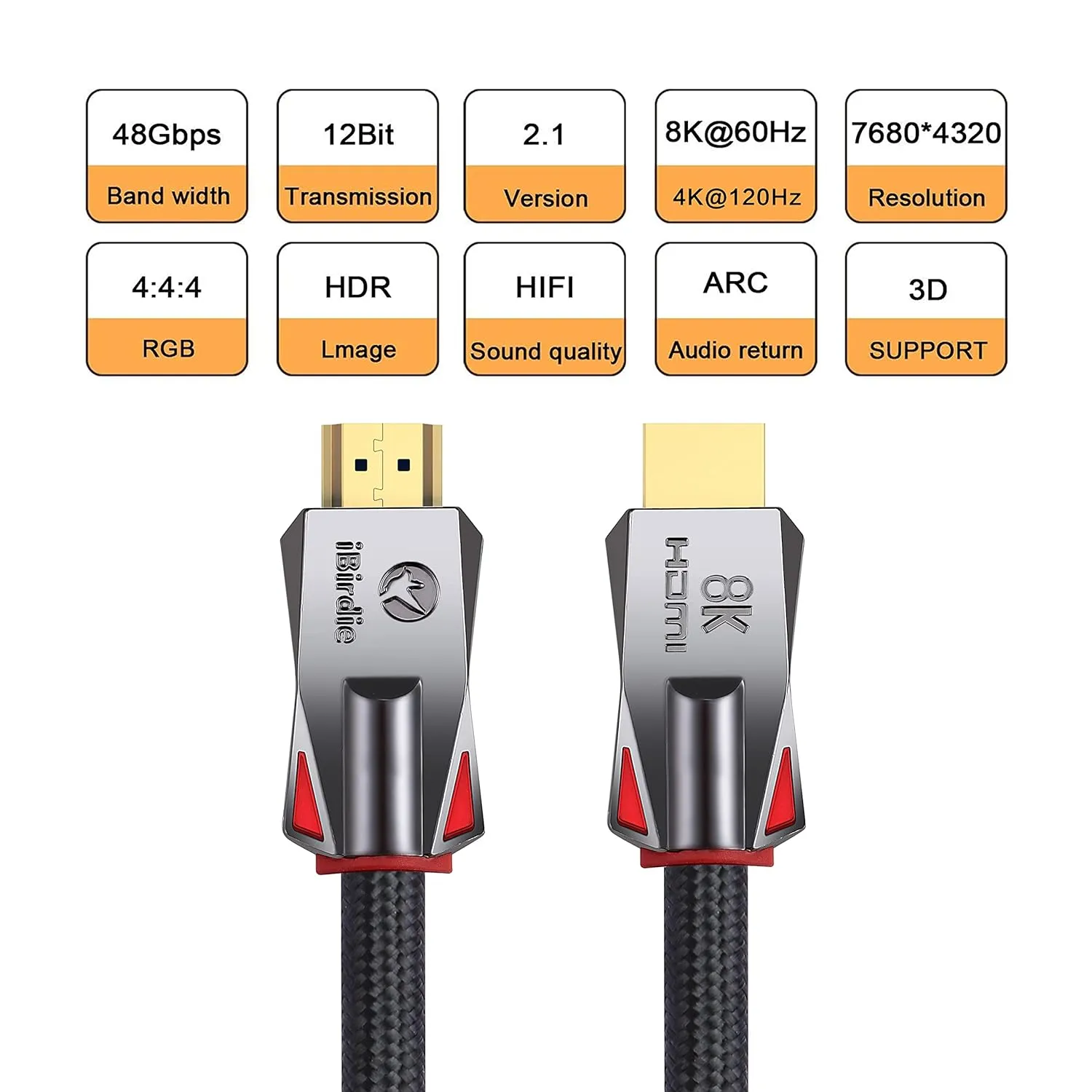

- 48Gbps bandwidth for latest features HDR, HDCP 2.3/2.2, compatible with Dolby Atmos Vision, Dynamic HDR, ALLM, QFT, QMS, VRR. And supports ARC and EARC from 1 foot to 100 feet.
- Backward compatible with 4K144hz, 4K120hz 4K60hz 2K165hz 2K144hz 2K120Hz 2K75hz 2k60hz 1080p240hz 1080p144hz 1080p60hz. Backward compatible with HDMI 2.1 2.0b 2.0a 1.4b versions
- Compatible with PS5, Xbox Series X, LG CX C9 B9, Sony X900H Z8H, Samsung Q80T Q90T, Nvidia RTX 3080 3090 4070 4080 4090.
Product Description
Kind reminder.
Most 4K/8K TVs do not have all the features of HDMI 2.0/2.1 enabled. You need to enable all HDMI 2.0/2.1 features on your own in the TV settings.
The iBirdie 32 foot to 328 foot HDMI cable is an active HDMI cable. You need to use the HDMI USB cable included in the HDMI box to connect to any 5V USB port or any 5V USB adapter other than HUB. Why do we need to use this HDMI USB cable? Due to certain HDMI slots, such as those on HUB, SWITCH, or Splitter, it is not possible to provide sufficient power for active HDMI cables. Active HDMI cables require sufficient power to function properly. Please connect the active HDMI cable to the HDMI USB cable, and then connect to HUB, SWITCH, or Splitter. The active HDMI cable is directional. Directional HDMI means that the source end of HDMI needs to be connected to the source (this end must be plugged into the HDMI output of sources such as DVD/computer/PS5/Xbox...), while the other end is displayed on the monitor/TV/projector. Before choosing our active HDMI cable, it is important to understand these instructions.
HDMI 2.1 CABLE
HDMI 2.1 Cable features VRR, QMS, QFT, and ALLM, providing a smoother gaming experience and faster image response times
High compatibility
HDMI 2.1 Cable is compatible with the latest devices and is also backward compatible with HDMI 2.0b/2.0a/2.0/1.4/1.3/1.2/1.1
iBirdie HDMI cable series.
| Customer Reviews | 4.6 out of 5 stars 4,767 | 4.6 out of 5 stars 876 | 4.4 out of 5 stars 1,312 | 4.6 out of 5 stars 856 | 4.6 out of 5 stars 28,383 | 4.6 out of 5 stars 813 | 4.7 out of 5 stars 891 |
| Price | $10.99$10.99 | $9.99$9.99 | $35.99$35.99 | — | — | $6.59$6.59 | $15.99$15.99 |
| Bandwidth | 48Gbps | 48Gbps | 18Gbps | 18Gbps | 18Gbps | 18Gbps | 18Gbps |
| in-Wall Rated | ✘ | ✔ | ✘ | ✔ | ✘ | ✘ | ✘ |
| Braided | ✔ | ✘ | ✘ | ✘ | ✔ | ✘ | ✘ |
| Bi-Directional | ✔ | ✔ | ✘ | ✔ | ✔ | ✔ | ✔ |
| 4K 120Hz | ✔ | ✔ | ✘ | ✘ | ✘ | ✘ | ✘ |
| 4K 60Hz | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 1440p 165Hz | ✔ | ✔ | ✔ | ✔ | ✔ | ✘ | ✘ |
| 1440p 60Hz | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 1080p | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
What if the 4K 120Hz TV does not support 4K 120hz? Part 1
For Samsung 4K 120Hz TVs, turn on game mode in the TV settings.For LG 4K 120Hz TVs, enter TV settings, HDMI settings, HDMI DEEP COLOR then select 4K.For sony 4K 120Hz TVs, please turn on HDMI enhancement and turn off Dolby Vision in the TV settings.
What if the 4K 120Hz TV does not support 4K 120hz? Part 2
Hisense 4K120Hz TVs, enter TV Settings->HDMI select HDMI Enhancement. TCL 4K120Hz TVs, enter TV settings->General, turn on HDMI advanced standard, change Graphic setting toVariable refresh rate. Update RTX 3070-3090 driver on the NVIDIA website.
What if the monitor shows no input source?
You need to modify the input source of the monitor, enter the monitor settings and find the input source SOURCE, and modify it to the port you plug in HDMI cable.
What should I do when the TV may show no input source when the MAC/Laptop/PC/Xbox/PS5 is connected to the Smart TV?
Turn on the TV first, wait for the TV to display the main interface, and then turn on the MAC/laptop/PC/Xbox/PS5. Or Manually switch the input source to HDMI in the TV settings.You also can re-plug the HDMI cable on the MAC/laptop/PC/Xbox/PS5 end
What should I do when the TV is connected to the AVR Receiver and cannot work?
First, check if the HDMI cable is connected to the HDMI ARC/eARC port of the receiver. Second, enable the ARC (eARC) function in TV settings. Finally, select the input source for the HDMI port where the HDMI cable is plugged into for the receiver.
