Product Description
-
1/2.8" progressive scan CMOS
-
Up to 1920 × 1080@30fps resolution
-
Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
-
25× optical zoom, 16× digital zoom
-
WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
-
Up to 150 m IR distance
-
24 VAC & Hi-PoE
-
Support H.265 /H.265 video compression
Product Specification
|

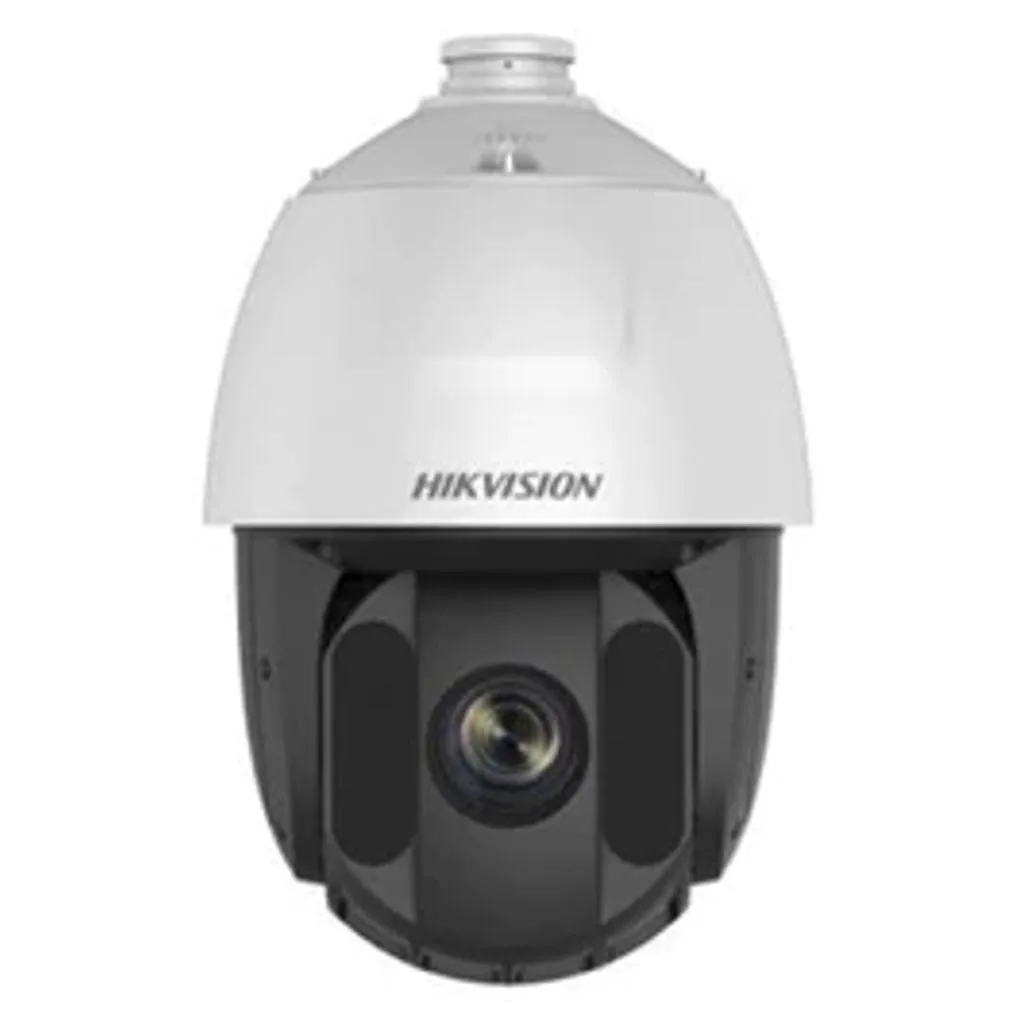

Brand |
Hikvision |
|
Product Code |
DS-2DE5425IW-AE |
|
Product Type |
IP PTZ Camera |
|
Power |
24 VAC and Hi-PoE Max.: 30 W (Max. 10 W for IR) |
|
Working Temperature |
-30°C to 65°C (-22°F to 149°F) |
|
Working Humidity |
≤ 90% |
|
Protection Level |
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|
Material |
ADC 12, PC 10% GF |
|
Image Sensor |
1/2.5" progressive scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR |
|
White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|
Gain |
Auto/Manual |
|
Shutter Time |
50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
|
Day & Night |
IR Cut Filter |
|
Digital Zoom |
16× |
|
Privacy Mask |
24 programmable privacy masks |
|
Focus Mode |
Auto/Semi-automatic/Manual |
|
WDR |
120 dB WDR (not supported by full frame rate) |
|
Focal Length |
4.8 mm to 120 mm, 25× optical zoom |
|
Zoom Speed |
Approx. 3.6 s (optical lens, wide-tele) |
|
Field of View |
Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele) |
|
Working Distance |
10 mm to 1500 mm (wide-tele) |
|
Aperture Range |
F1.6 to F3.5 |
|
IR Distance |
150 m |
|
Smart IR |
Support |
|
Movement Range (Pan) |
360° endless |
|
Pan Speed |
Configurable, from 0.1°/s to 120°/s Preset speed: 120°/s |
|
Movement Range (Tilt) |
From -15° to 90°(auto-flip) |
|
Tilt Speed |
Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
|
Proportional Zoom |
Support |
|
$
