Draper 300371 Phantom Projector Lift - Model B

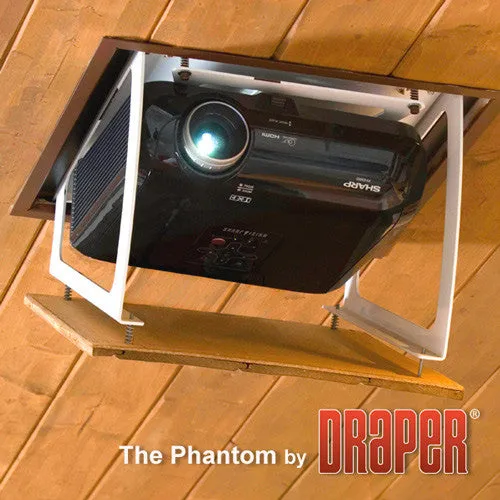

The totally unique Phantom quickly and quietly dips the projector out of the ceiling and into the "show" position at the touch of a switch or wireless transmitter. The Phantom can also be used for videoconferencing cameras, speakers, etc.
The projector is mounted above the ceiling. When activated, a trapdoor brings the projector into your room using a precision actuator with preset limits. The projector is easily aligned during installation to provide a direct light path onto your Draper projection screen.
The Phantom is supplied with a universal-style bracket that allows for easy attachment of a variety of projector models. Two Phantom models to choose from that fit most projectors up to 26 lbs. The Phantom motor is a 24V DC low voltage motor, which allows for easier control and wiring of the lift.
Model B Dimensions:
- Overall Size (w x l x h): 21-5/16" x 32-3/4" x 17-3/4"
- Ceiling Panel Size (w x l): 19-9/16" x 19-9/16"
- Installation Height (lift only): 18"
- Net Weight of Unit: 27 lbs.
- Lifting Capacity: 26 lbs.
- Maximum Projector Width: 16-7/8"
- Control Included: Wall Switch
- Control Options: RF Remote
