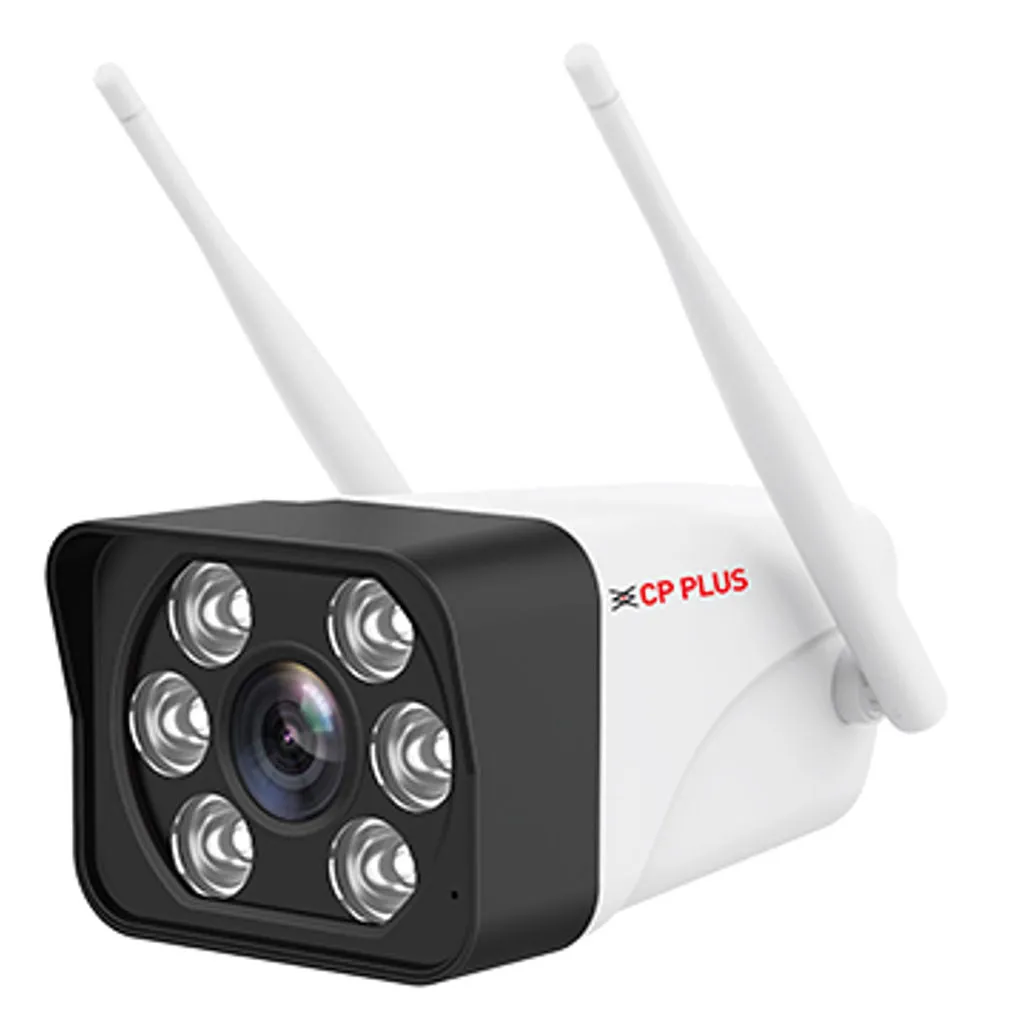

Product Description
-
1/3” 3MP CMOS Image Sensor (0.84667cm)
-
H.265/H.264 Video Compression
-
Maximum 15fps@3MP
-
Support RJ45 Port and 4G Sim
-
Support Two-way Audio Communication
-
Support Micro SD Card 256GB
-
IR Range up to 20-30mtr, spotlight 15mtr
-
Support IP66
-
With Infrared and spotlight, support three night vision modes, adjustable to achieve full color at night
Product Specification
| Brand | CP Plus |
| Product Type | Surveillance Camera |
| Product Code | CP-V32G |
| Image Sensor | 1/3” 3MP CMOS Image Sensor (0.84667cm) |
| Video Compression | H.265/ H.264 |
| Resolution | 3MP |
| Minimum Illumination | Color: 0.1Lux, black and white 0.01Lux |
| Lens | 4mm |
| Angle Of View | 104° |
| View Mode | HD and SD |
| DNR | 3D digital noise reduction |
| Day-Night Mode | Smart Mode, Infrared Mode, Color Mode |
| Flip | Supported |
| Dynamic Range | Digital WDR |
| Stream | Main stream:2304 x 1296, Sub stream: 640 x 360 |
| Frame Rate | Maximum 15fps, frame rate self-adaption |
| Audio | Two Way Audio |
| Audio Input | Built in Mic |
| Audio Output | Built-in Speaker |
| Audio Compression | AAC, G711A |
| Motion Detection | Supported |
| Alarm Notification Push | Supported |
| Human Detection | Supported |
| Privacy Mode | Supported |
| 4G Standard | 4G: LTE-TDD/LTE FDD |
| 4G Frequency Band | FDD LTE:B1/B3/B5/B8;TDD LTE: B34/ B38/B39/B40/B41; WCDMA:B1/B5/B8 |
| RTMP | Supported |
| Ethernet | 10-100Mbps adaptive |
| Onvif | Supported |
| IR | 20-30mtr |
| Memory Slot | Micro SD Card (Maximum 256GB) |
| Weatherproof Standard | IP66, TVS 4000V Lightning protection |
| Spotlights Distance (LED) | Spot Light 15 mtr |
| Power Source | DC 12V, 1A |
| Working Temperature | -20 ֯C ~ 50 ֯C |
| Working Humidity | <95% (no condensation) |
| IR LED | 6 white LEDs and6 infrared LEDs, Twins color LED |
| Power Consumption | 12W |
