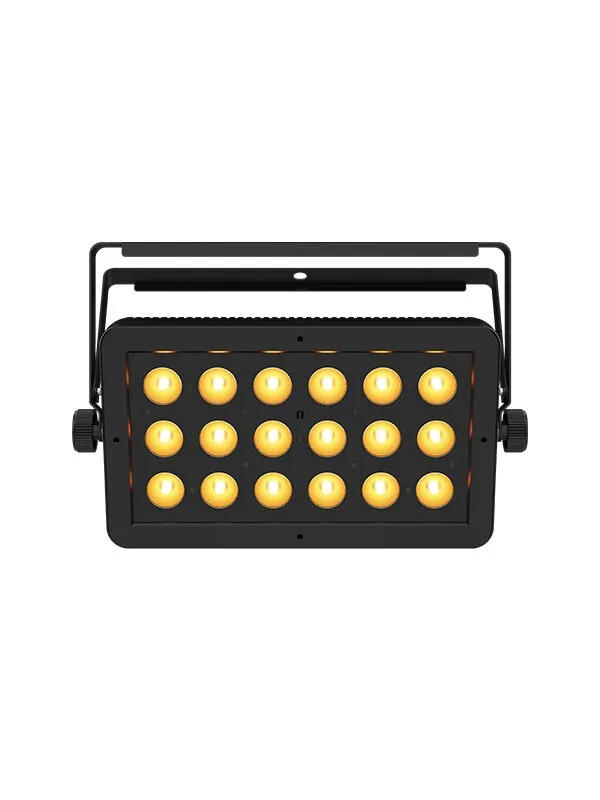

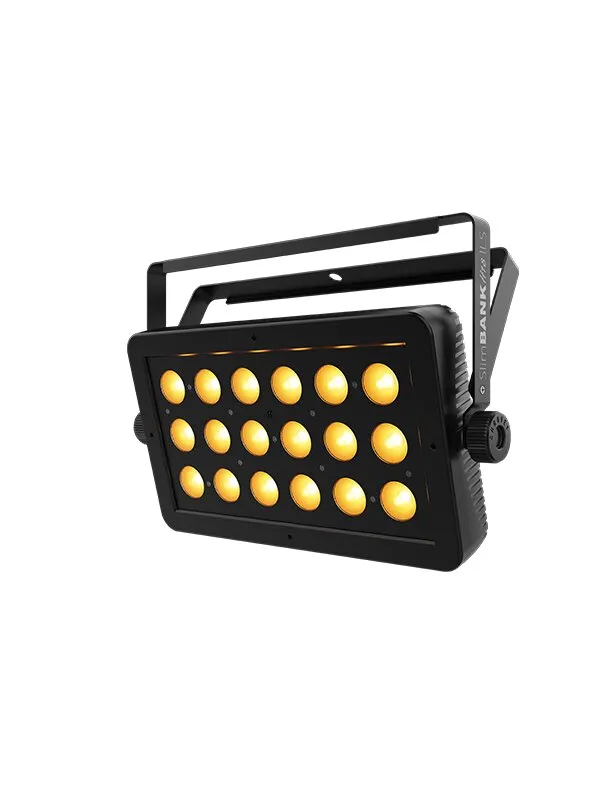

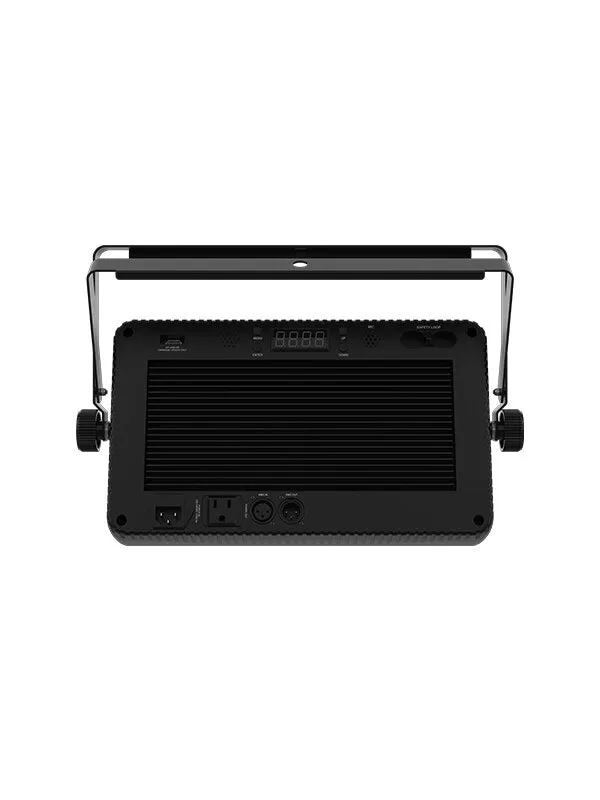

SlimBANK H18 ILS is a versatile hex-color (RGBAW UV) LED wash light with brilliant eye candy effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time. Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments.​

Features

• Versatile hex-color LED wash light with brilliant eye candy effects
• ILS compatibility for use in the ILS ecosystem
• Generate complex looks easily with built-in, eye-catching auto programs with sectional control
• Adjustable barn doors help direct and focus the light
• Control options include IRC-6 remote, Master/Slave, DMX, or ILS
• Achieve smooth LED fading with built-in dimming curves
• Ideal for sound-sensitive environments due to the radiant cooling design and no fan
• Save time running extension cords by power linking multiple units.

Specifications

• DMX Channels: 6, 8, 12 or 22
• DMX Connectors:3-pin XLR
• Light Source: 18 LEDs (hex-color RGBAW UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 27°
• Field Angle: 43°
• Illuminance: 3,111 lux @ 2 m
• Lumens: 3,356
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
• Weight: 6 lb. (2.7 kg)
• Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
• Approvals: CE, RoHS
• Optional Controllers: IRC-6, ILS Command
• Bracket Mounting Hole: 13 mm
• Beam Angle: 27°
• Field Angle: 43°
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
